ELEKTRON QUATTRO

The Swiss army knife of automated cutting machines.

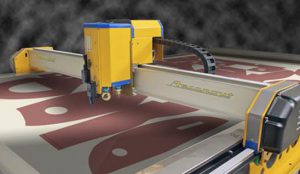

The Aeronaut Elektron Quattro is a brilliant industrial-strength plotter-cutter of amazing versatility. Designed to be future-proof, the Elektron Quattro has many unique features, carrying on from the tradition of other landmark Aeronaut machines. The Elektron Quattro can carry up to four steered tools. All machines are fitted with a marker and laser pointer holder.

The Aeronaut Elektron Quattro is a brilliant industrial-strength plotter-cutter of amazing versatility. Designed to be future-proof, the Elektron Quattro has many unique features, carrying on from the tradition of other landmark Aeronaut machines. The Elektron Quattro can carry up to four steered tools so a machine can be configured to suit the specific needs of your work. You can order a machine with two or three steered tools, and if your needs change, easily upgrade on-site to the full four. All machines are fitted with a marker for marking pattern numbers and a laser pointer holder for digitising, alignment and pattern matching.

Steered tools are held and indexed with a new (patent pending) Cam-lock system. You can fit and change any tool on any shaft in seconds so you have the right setup for every job, now and in the future. Rotary blades, drag knives, creasing and scoring tools as well as notch tools and drill punches all accurately mount on large diameter precision bearings.

A software controlled digital pressure regulator applies the right force to each tool, so even high pressure tools like drill punches and creasers can be swapped with other tools. If a job needs it, you have the flexibility to use more than one drill punch tool on the same machine for no extra cost.

The Elektron chassis is light and extremely stiff giving excellent dynamic performance even to machines over 4 metres wide. And the Aeronaut Elektron Quattro has been designed from the beginning for absolutely minimal maintenance and the lowest ownership costs.

The Elektron Quattro is expandable, easily installed, and low maintenance.
Up to four steered tools.
The integrated drill punch function means that any steered tool axis can be used for a drill punch.
Optional high cutting pressure on any axis.
Machines can be expanded in length at any time without extensive rebuilding and re-calibration.
Cam-lock quick-change tooling for rapid and accurate tool changes
Very easy to use
Repeatable high accuracy production
Smooth and precise cutting
Low purchase price
Easy servicing
Compatible with most software and computers
Cheap, widely available consumables
Quick installation
Expandable
Versatile
Widely available spares
Rigid guide extrusions
Features
High performance plotting and cutting
Tangentially steered cutting blade with twin instrument ball races for precise cutting
Over 20mm tool travel, handles uneven table surfaces
Low-backlash Cat drive
Optional vinyl sign cutting tool
Micro-stepper drive motors
Low cost consumable pens and blades
Precision ball slide on pen carriage
Self centring pen holder ensures quick changes and accuracy with all marker types.
Runs from Macintosh or Windows PCs
HPGL compatible command language
Low maintenance
Optional remote joystick control.
Cutting widths up to 6.5m (256″)
Cutting lengths up to 25m (82 feet)
Advantages
Repeatable high accuracy production
High Speed Operation
Improved product quality
Reduced labour
Just-in-Time production
Reduced material waste
Multiple applications with one machine
